PowerXchanger  |  SKU: XTR-750

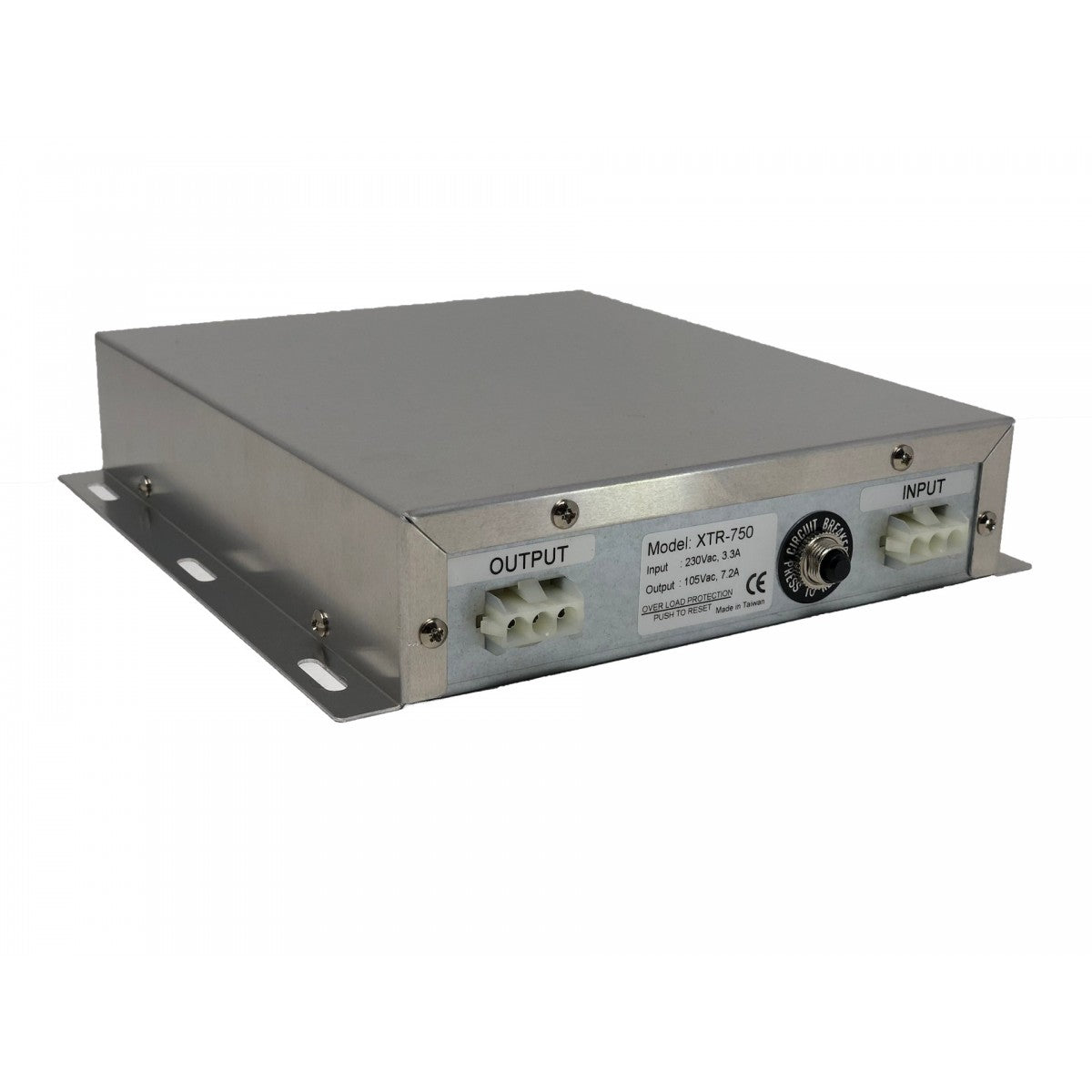

XTR-750 | 750W | Step-Down Auto Transformer – 230V to 105V

$225.00 USD

Model: XTR-750

Input voltage: 230Vac
Input frequency: 50/60Hz

Output voltage: 105Vac
Output frequency: 50/60Hz

Capacity: 750W

The XTR-750 Step-down auto transformer with continuous power, It provides constant and regulated 105Vac~50/60Hz output power and combined load up to 750W Watts.

Ultra slim auto transformer for standard use and especially engineered for refrigerators, pumps, and fractional motors.

At only 1.7 in ( 4.3 cm ) in height and 10 lb (4.5 kg) in weight. It can be installed on to an appliance or installed nearby, easily hidden from view.

➤ View XTR-750 Specifications

➤ View / Download Product Brochure (PDF)
➤ Input Power Cords Type F, G, I, M with Safety Locking Connectors. (Image)

PowerXchanger, the leading designer and inventor of the world's most advance solid-state compact Voltage and Frequency Converter, is pleased to introduce its first Ultra Slim Step-Down auto Transformer.

The home appliance and related industries are aware that compressors and fractional electric motors, such as those in refrigerators and pumps, that were designed to operate on 60Hz power supply, will run extremely hot while operating on a 50Hz power grid. This will result in a significant reduction in the life span of the product.

PowerXchanger's new Step-Down Auto Transformer eliminates this excessive heat problem allowing the appliance or motor to operate at normal temperature.

The XTR-750 Step-Down Auto Transformer has been engineered to reduce standard step-down transformer output to 105 Volts, a reduction of 10%. This reduced output voltage compensates for the heat buildup generated by higher input current to the compressor or motor due to the 50Hz frequency at input. The products then operate to the electrical load level they are designed for, giving them their designed and expected performance and life span.

The external resettable circuit breaker and internal thermal trigger switch, provide for additional protection for the refrigerator or fractional motor.

Included Accessories:

PowerXchanger XTR-750 Step-Down Auto Transformer built-in 3-PIN locking connector assures secure and spark less connection

For a secured connection between the electrical appliance make sure to push the plug all the way in until the clip locked in with the 3-pin Locking Connector(s).Please refer to the video below:

Specification
Models XTR-750
Output
Output capacity 750VA/750W
Output voltage 105Vac
Output peak current 250ms N/A
Maximum continuous load 750W
Maximum peak load N/A
Voltage regulation N/A
Output frequency 50/60Hz
Output frequency synchronization N/A
Crest factor N/A
Voltage waveform N/A
Total harmonic distortion resistive load N/A
Total harmonic distortion reactive load N/A
Standby power N/A
Output emi filter N/A
Output rfi filter N/A
Clamp level N/A
Efficiency input to output N/A
Output Connection From Mains
Ground N/A
Neutral N/A
Input
Nominal input voltage 230Vac
Input voltage range N/A
Input current N/A
Input frequency range 50/60Hz
Input neutral auto detect and correct N/A
Wall outlet type required N/A
Phase N/A
Noise filtering N/A
Input emi filter N/A
Input rfi filter N/A
Overcurrent protection input N/A
Power factor N/A
Switch on surge in rush current N/A
Voltage interruption ride through N/A
Protection
Overcurrent protection output N/A
Short circuit protection By Circuit Breaker (10A) (Push to Reset)
Over temperature protection By Thermal Trigger Switch (Auto Reset When Temperature Drops)
Indicators and Alarms
Lcd display N/A
Indicator load level N/A
Indicator overload N/A
Indicator over temperature N/A
Audible alarms N/A
Audible alarm overload N/A
Audible alarm short circuit N/A
Audible alarm over temperature N/A
Environmental and Safety
Sealed solid state electronics N/A
Operating temperature N/A
Transit storage temp N/A
Relative humidity N/A
Operating altitude N/A
Moisture sensitivity N/A
Audible noise N/A
Safety markings N/A
Cooling
Cooling method N/A
Natural ventilation cooling N/A
Internal fans N/A
External emergency cooling fan N/A
Physical

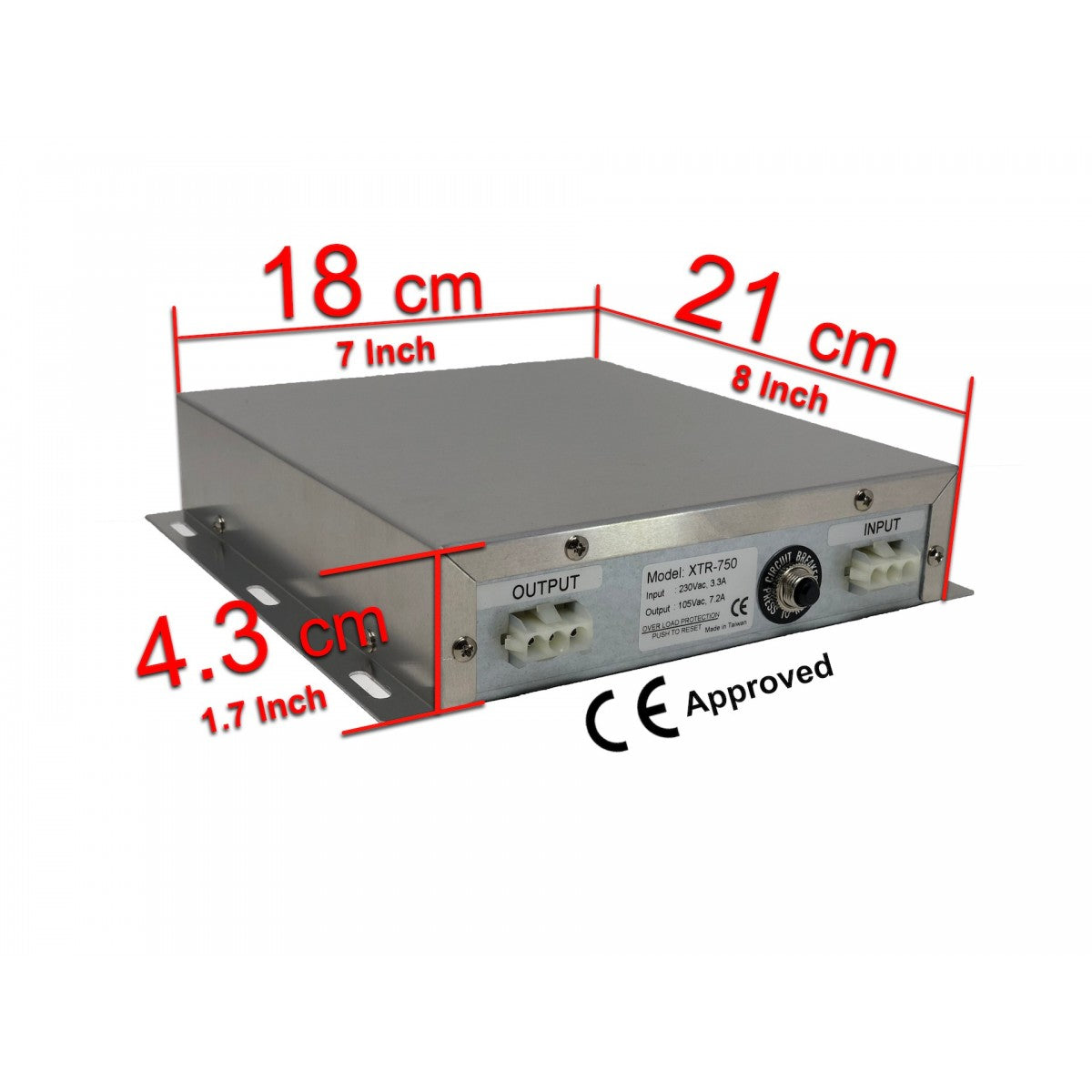

Product dimensions
(L x W x H)		 8 in x 7 in x 1.7 in / 21 cm x 18 cm x 4.3 cm
Product weight 10 lb / 4.5 kg
Carton dimensions
(L x W x H)		 13 in x 16 in x 8 in / 33 cm x 40 cm x 20 cm
Shipping weight 14 lb / 6.4 kg
Warranty, Quality Control, and International Approvals
Warranty 2 Years, Full Replacement
Quality control standard ISO9001
UL-ULus N/A
UL 1012 N/A
UL-cUL N/A
DEMKO-CB N/A
TUV/SUD-CB N/A
FCC Part 15 N/A
EMC N/A
Other

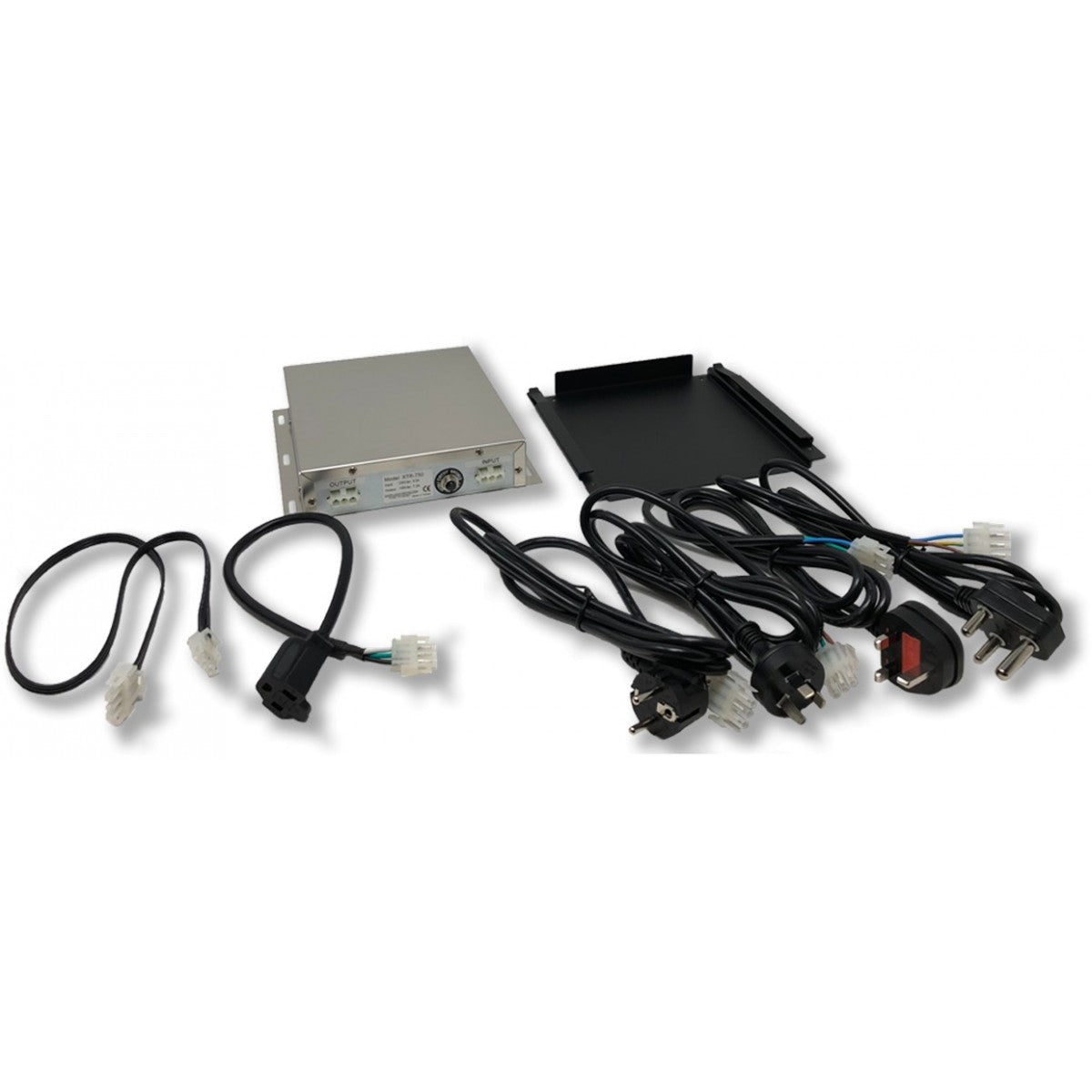

Standard accessories Input Power Cords, Type F, Type G, Type I, Type M. Wall/Appliance Mount
Wall mountable Yes
Appliance mountable Yes
Compatibility
Output compatibility with ups N/A
Ac input generator compatible N/A
