PowerXchanger  |  SKU: XTI-ISO2K

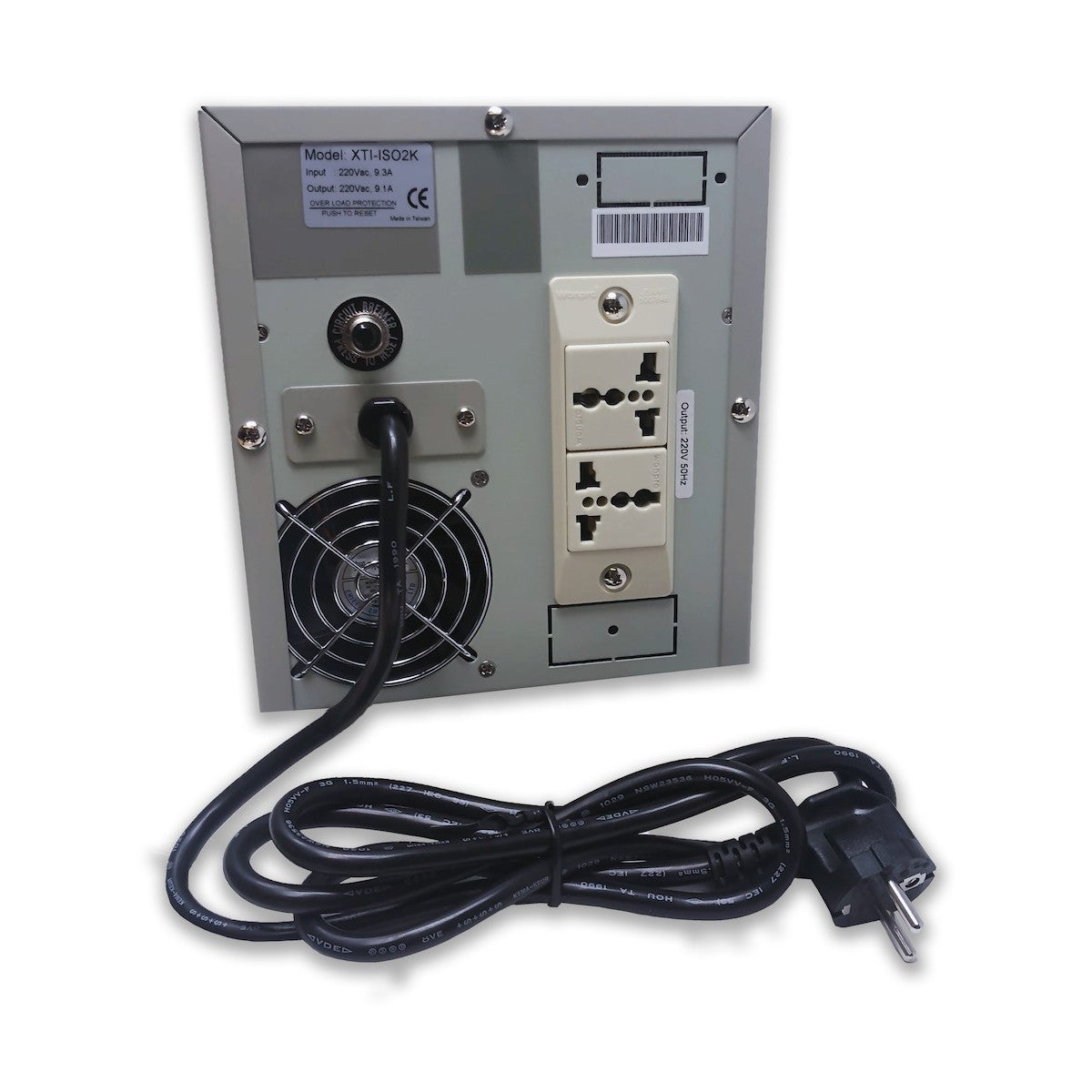

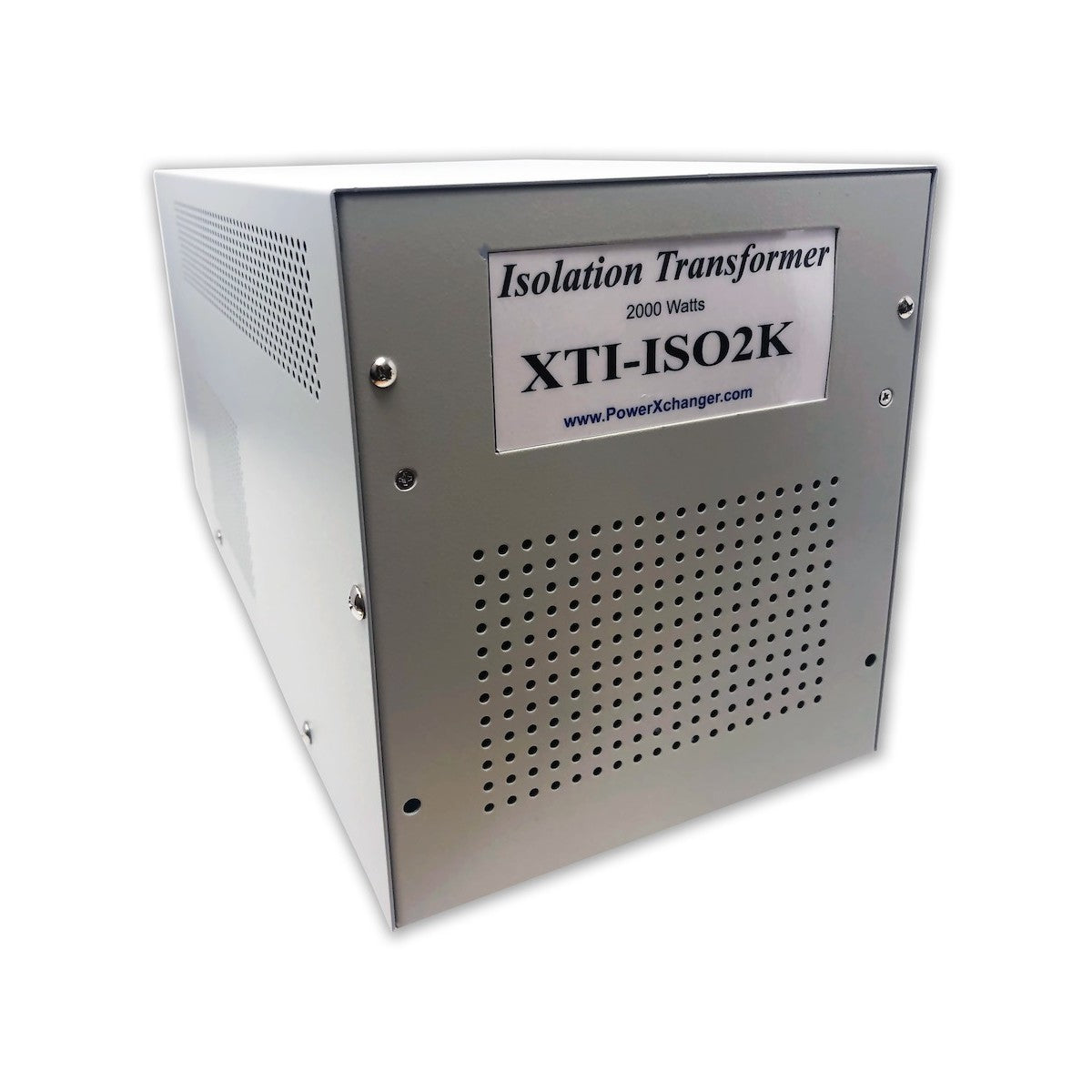

XTI-ISO2K Isolation Transformer

$1,200.00 USD

Model: XTI-ISO2K

Input voltage: 220Vac
Output voltage: 220Vac
Capacity: 2000W (9.1 A)
Maximum Output Current: 9.1 A

PowerXchanger technology does not provide isolation from the mains. If your equipment requires grounding, it's critical that an isolation transformer is used between the mains and the PowerXchanger.

➤ View XTI-ISO2K Specifications

➤ View / Download Product Brochure (PDF)

XTI-ISO2K Isolation transformer

Specification
Models XTI-ISO2K
Output
Output capacity 2000W
Output voltage 220Vac
Maximum output current 9.1 A
Output peak current 250ms N/A
Maximum continuous load 2000W
Maximum peak load N/A
Voltage regulation N/A
Crest factor N/A
Voltage waveform N/A
Total harmonic distortion resistive load N/A
Total harmonic distortion reactive load N/A
Standby power N/A
Output emi filter N/A
Output rfi filter N/A
Clamp level N/A
Efficiency input to output N/A
Output Connection From Mains
Ground N/A
Neutral N/A
Input
Nominal input voltage 220Vac
Input voltage range 220Vac
Input current 9.3 A
Input neutral auto detect and correct N/A
Wall outlet type required N/A
Phase N/A
Noise filtering N/A
Input emi filter N/A
Input rfi filter N/A
Overcurrent protection input N/A
Power factor N/A
Switch on surge in rush current N/A
Voltage interruption ride through N/A
Protection
Overcurrent protection output 15A Max at AC Input
Short circuit protection By Circuit Breaker (Push to Reset)
Over temperature protection N/A
Indicators and Alarms
Lcd display N/A
Indicator load level N/A
Indicator overload N/A
Indicator over temperature N/A
Audible alarms N/A
Audible alarm overload N/A
Audible alarm short circuit N/A
Audible alarm over temperature N/A
Environmental and Safety
Sealed solid state electronics N/A
Operating temperature N/A
Transit storage temp N/A
Relative humidity N/A
Operating altitude N/A
Moisture sensitivity N/A
Audible noise N/A
Safety markings N/A
Cooling
Cooling method Forced Air Cooling by Internal Fan
Natural ventilation cooling N/A
Internal fans N/A
External emergency cooling fan N/A
Physical
Product dimensions
(L x W x H)		 16 in x 7 in x 8 in / 41 cm x 18 cm x 20 cm
Product weight 50 lb / 22 kg
Carton dimensions
(L x W x H)		 22 in x 13 in x 14 in / 41 cm x 56 cm x 35 cm
Shipping weight 55 lb / 15 kg
Warranty, Quality Control, and International Approvals
Warranty 2 Years, Full Replacement
Quality control standard ISO9001
UL-ULus N/A
UL 1012 N/A
UL-cUL N/A
DEMKO-CB N/A
TUV/SUD-CB N/A
FCC Part 15 N/A
EMC N/A
Other
Standard accessories N/A
Wall mountable N/A
Appliance mountable N/A
Compatibility
Output compatibility with ups N/A
Ac input generator compatible N/A
