How a Shinola Runwell Turntable Runs at Perfect Speed in the UK — With a Completely Hidden XS-05GA Install
When you've invested in a turntable like the Shinola Runwell — assembled in Detroit from American-sourced components, with a 40-pound machined aluminum chassis and a Hurst synchronous motor — you don't leave it behind when you move overseas. Here's how one customer running the Runwell in the UK got correct 120V/60Hz playback speed from a converter you'd never know was there.
A Turntable Built for 120V/60Hz, Now Living on UK Power
When you've invested in a turntable like the Shinola Runwell — assembled in Detroit from American-sourced components, with a 40-pound machined aluminum chassis and a Hurst synchronous motor — you don't leave it behind when you move overseas. But bringing it to the United Kingdom introduces a problem that plug adapters and voltage transformers can't solve: the UK runs on 230V/50Hz, and the Runwell was built for 120V/60Hz.
That frequency difference changes the speed of every record you play. And for a customer who recently relocated to the UK with their Runwell, that wasn't an acceptable tradeoff. They needed correct playback speed, dead-silent operation, and a solution they'd never have to see or hear in their listening room.

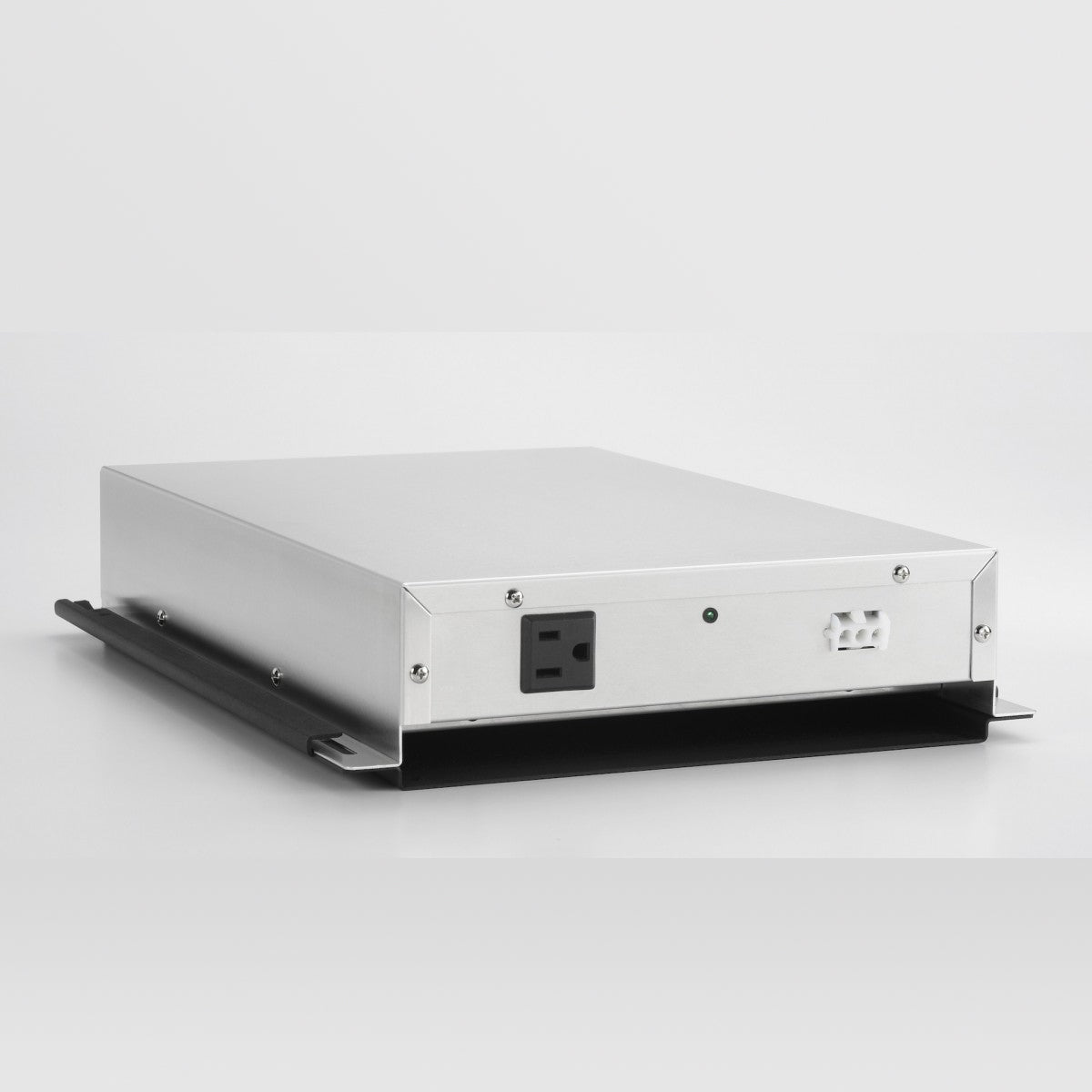

They chose the XS-05GA Slimline, mounted it behind their media console using the included mounting kit, and plugged in their turntable. The result: 120V/60Hz power, correct platter speed, and a converter that's invisible and completely silent.
Why 50Hz Is a Dealbreaker for the Shinola Runwell
The Shinola Runwell uses a Hurst 300rpm AC synchronous motor — the same American-made motor platform trusted by VPI and other high-end turntable manufacturers. Synchronous motors don't have adjustable speed. They lock directly onto the frequency of the incoming AC power to maintain a precise RPM. At 60Hz, the Runwell's motor spins at the exact speed needed to deliver accurate 33⅓ and 45 RPM playback.
Feed that same motor 50Hz power in the UK, and the platter runs roughly 17% slow. Every record plays flat and dragged. Vocals drop in pitch. Timing feels sluggish. A three-minute song stretches to three and a half. If you're listening to music you know well, the difference is immediately obvious and deeply unsatisfying.
A step-down voltage transformer handles the voltage difference (230V down to 120V), but it passes the UK's 50Hz frequency straight through without changing it. The turntable gets the right voltage, but the wrong frequency. For equipment that doesn't care about frequency, a transformer is often fine. For a turntable with a synchronous motor — and the Runwell's spec sheet explicitly lists its power supply as 120V/60Hz — it's not enough.
This is why the customer needed a true voltage and frequency converter: a device that regenerates 120V/60Hz output from the UK's 230V/50Hz mains supply.
Why the XS-05GA Was the Right Choice
The customer had a specific set of requirements that narrowed the field considerably.
- Zero fan noise. This was the deciding factor. In a hi-fi listening environment, any mechanical noise from a power converter is unacceptable. The XS-05GA has no fans — period. No internal fans, no vents, and no external cooling fans that spin up under load the way the Deluxe Series models (X-5, X-10, X-15) are designed to do when temperatures or load levels rise. The Slimline is completely enclosed and cooled entirely by natural convection. In a quiet room, it's inaudible.
- Small enough to hide. At just 2.36 inches (6 cm) in depth and 10.67 lbs (4.84 kg), the XS-05GA is the world's slimmest and lightest voltage and frequency converter. This customer used the included wall mount kit to secure it to the wall directly behind their media console. From the front of the room, you'd never know it was there.
- Clean, filtered power for audio. Beyond getting the frequency right, the XS-05GA functions as a power regenerator. It takes the incoming 230V/50Hz mains supply, converts it to DC internally, and regenerates a clean 120V/60Hz pure sine wave on the output. EMI and RFI filters on both input and output prevent electrical interference from reaching the audio chain. Output harmonic distortion is typically below 1% THD, and voltage regulation holds output fluctuations below ±2% (typically less than 1%). For a turntable like the Runwell — with its onboard phono preamp sharing the same power path — this quality of incoming power matters.
- Massive headroom for a turntable. The Shinola Runwell draws under 8 watts. The XS-05GA delivers 600W continuous. That means the converter is never working hard, which contributes to its thermal stability and longevity. It also means there's plenty of capacity to power a phono preamp, integrated amplifier, or other components in the same system if needed.
The Install: Wall-Mounted and Invisible
The photos below tell the story. The customer mounted the XS-05GA on the wall behind their media console using the wall mount plate that ships with every Slimline unit. The Type G input power cord (included for UK outlets) runs from the wall to the converter, and the output cable runs to the Runwell — all routed behind the furniture.
From the listening position, nothing is visible. No converter on a shelf, no transformer box on the floor, no cables in sight. The installation is permanent, clean, and completely unobtrusive — exactly the kind of setup you'd expect from someone who chose a turntable as meticulously designed as the Shinola Runwell.
This is a use case the Slimline Series was purpose-built for. Its slim profile and included mounting hardware are designed so the converter can be installed behind, underneath, or alongside furniture and appliances — hidden from view while delivering continuous, regulated power.
Why Silence Matters More for Audio Than Any Other Application
A frequency converter powering a washing machine or a kitchen appliance doesn't need to be silent. Background appliance noise masks whatever the converter might contribute. But audio is different.
In a dedicated listening environment, the noise floor matters. Audiophiles spend significant money on turntable isolation, vibration damping, and cable shielding — all to eliminate sources of unwanted noise. The Shinola Runwell itself weighs 40 pounds partly because that mass helps reject external vibration. Introducing a converter with a cooling fan into that same room would work against everything the turntable's engineering is trying to achieve.
The Deluxe Series models (X-5, X-10, X-15) are excellent converters. They share the same sealed, solid-state electronics and EMI/RFI filtering as the Slimline. But they include an external fan that activates automatically when the unit's load or ambient temperature exceeds certain thresholds. For powering washers, dryers, refrigerators, and kitchen appliances, this design is ideal — the fan keeps the unit cool under sustained heavy loads, and the appliance's own noise makes the fan inaudible.
For a turntable in a quiet room, even an intermittent fan is a problem. The XS-05GA eliminates this entirely. It has no fan to activate — ever. Its completely sealed enclosure relies solely on passive convection, and because a turntable draws a fraction of the unit's rated capacity, thermal buildup is minimal.
What the XS-05GA Delivers (Quick Specs)
| Specification | Detail |
|---|---|
| Input | 200–240V / 50Hz |
| Output | 120V / 60Hz (pure sine wave) |
| Continuous Power | 600W (5 Amps) |
| Depth | 2.36 in (6 cm) |
| Weight | 10.67 lbs (4.84 kg) |
| Cooling | Passive convection only — zero fans |
| Output THD | < 3% (typically < 1%) |
| Voltage Regulation | ± 2% (typically < 1%) |
| EMI/RFI Filtering | Input and output |
| Surge Protection | Up to 150A inrush |
| Enclosure | Sealed, solid-state, IP52-rated |
| Certifications | UL, CE, FCC, IEC 60335, IEC 60950 |
| Included | Wall mount kit, Type G input power cord (plus Type F, I, M) |
Thinking About Bringing Your Turntable Overseas?
If you're relocating from the United States to the UK, Europe, or any 220–240V / 50Hz country and you want to keep using your American turntable, here's what to keep in mind.
Check your motor type. If your turntable uses a synchronous AC motor (most belt-drive turntables do), it needs 60Hz power to play at correct speed. A transformer alone won't fix this — you need frequency conversion.
Check the wattage. Turntables draw very little power. The XS-05GA's 600W rating provides massive headroom for a turntable alone, and enough to run a small audio system on the same converter.
Think about noise. If the converter will live near your listening area, the XS-05GA's fanless design makes it the natural choice. If the converter will be in another room or a utility closet, the Deluxe Series (X-5 or X-10) gives you additional capacity with the same power quality.
Think about space. The XS-05GA's slim profile and wall mount kit are designed for exactly the kind of hidden install shown in this post. If you have a media console, entertainment center, or equipment rack, the converter fits behind it.
The XS-05GA delivers the exact 120V/60Hz power your Shinola Runwell was designed for — silently, invisibly, and continuously.
Your turntable doesn't know it's not in the US. Bring it. Power it properly. Never see or hear the difference.
Not sure which model fits your setup? Contact us with your turntable make and model and we'll confirm compatibility and recommend the right converter.
Frequently Asked Questions
Can I use my American turntable in the UK with just a plug adapter or step-down transformer?
Can I use my American turntable in the UK with just a plug adapter or step-down transformer?
It depends on the motor. If your turntable uses a synchronous AC motor — which most belt-drive turntables do, including the Shinola Runwell — then no. A plug adapter does nothing but change the plug shape. A step-down transformer changes the voltage (230V to 120V) but passes the UK's 50Hz frequency through unchanged. Since a synchronous motor's speed is governed by mains frequency, your records will play roughly 17% slow on 50Hz. You need a voltageand frequency converter to deliver the 120V/60Hz power your turntable was designed for.
Will the XS-05GA introduce any noise or hum into my audio system?
Will the XS-05GA introduce any noise or hum into my audio system?
No. The XS-05GA has sealed, solid-state electronics with no moving parts — no fans, no vents, no transformer hum. It also includes EMI and RFI filters on both the input and output stages, which actively prevent electrical interference from reaching your equipment. Output harmonic distortion is typically below 1% THD with voltage regulation below ±1%. Several PowerXchanger models are used by audiophiles specifically because the regenerated output is cleaner and more stable than what comes out of the wall. For more detail, see the Audiophile Power Guide.
How much power does a turntable actually need? Is the XS-05GA overkill?
How much power does a turntable actually need? Is the XS-05GA overkill?
Turntables are extremely low-power devices. The Shinola Runwell, for example, draws under 8 watts. Even complex turntable setups with external power supplies rarely exceed 30W. The XS-05GA's 600W continuous rating provides enormous headroom, which actually works in your favor: the converter is barely loaded, so it runs cooler, quieter (not that the Slimline has fans to begin with), and with even tighter voltage regulation. That headroom also means you can power additional components — a phono preamp, a small integrated amp, or a DAC — from the same converter without approaching its limits.
Can I power my entire hi-fi system from a single XS-05GA?
Can I power my entire hi-fi system from a single XS-05GA?
It depends on the total combined wattage of your system. The XS-05GA delivers 600W continuous. A turntable, phono preamp, and small integrated amplifier might total 200–400W, which is well within range. However, if your system includes a high-powered amplifier (many draw 300–500W or more on their own), you may exceed the XS-05GA's capacity. In that case, the Deluxe SeriesX-10 (1,200W) orX-15 (1,800W) would be the better fit. Note that the Deluxe Series includes an external fan that activates under higher loads — if total silence is critical, you may prefer to dedicate the fanless XS-05GA to your source components and use a separate converter for the amplifier in another location.Contact us with your full equipment list and we'll recommend the right setup.
What if my turntable has a DC motor or a quartz-locked motor instead of a synchronous AC motor?
What if my turntable has a DC motor or a quartz-locked motor instead of a synchronous AC motor?
Turntables with DC motors or quartz-locked speed control generate their own internal timing reference and are not directly dependent on mains frequency for platter speed. In those cases, the turntable may play at correct speed on 50Hz power — but you still need to address the voltage difference (120V vs. 230V). A step-down transformer might be sufficient for voltage-only conversion. That said, a frequency converter like the XS-05GA still offers significant advantages: it regenerates clean, regulated power with EMI/RFI filtering, which can reduce noise floor and improve performance in sensitive audio systems. Check your turntable's label or manual — if it lists 60Hz only (not 50/60Hz), frequency conversion is recommended regardless of motor type. When in doubt, send us a photo of the label and our engineers will confirm what you need.
