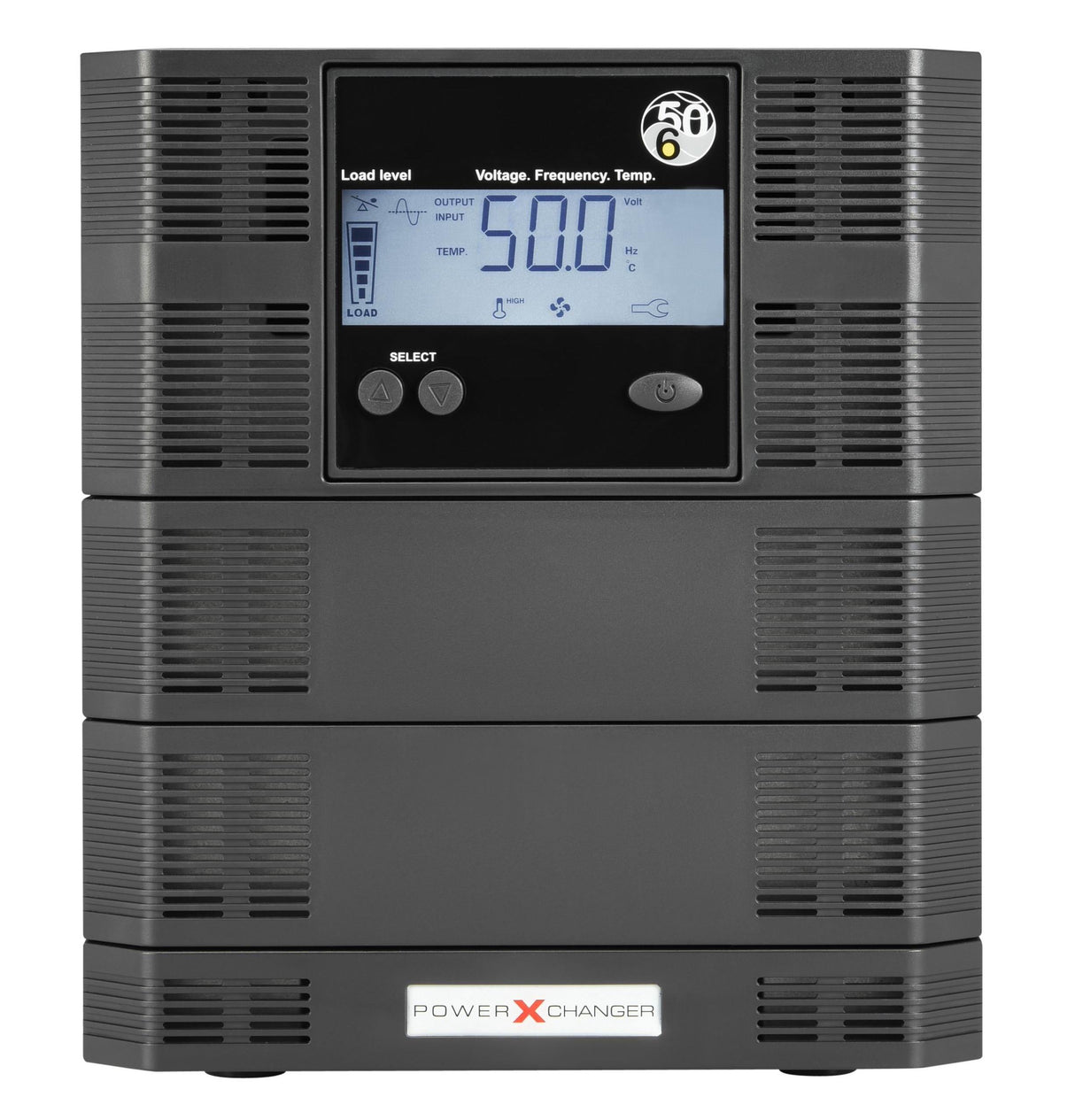

PowerXchanger  |  SKU: UX-1.5K

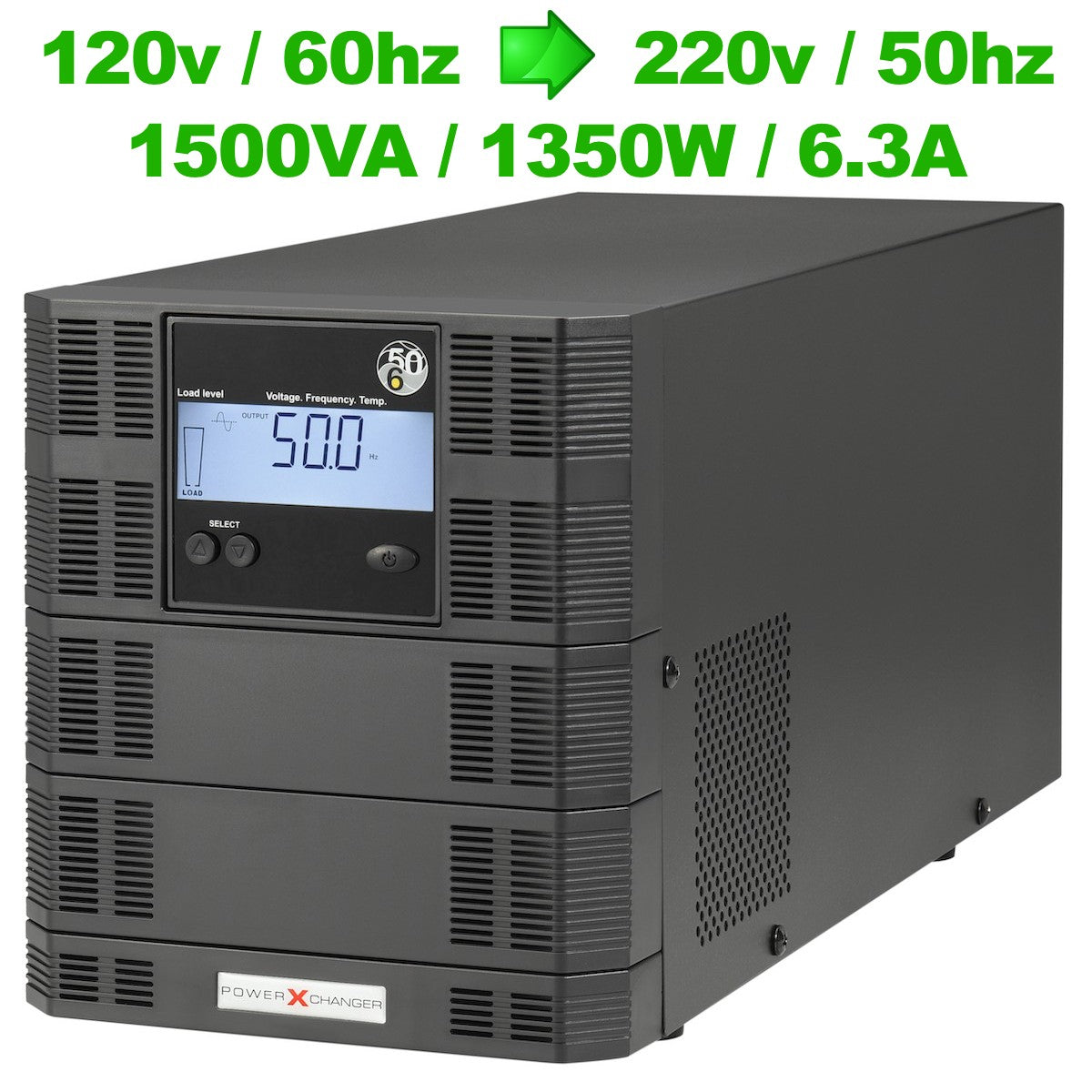

UX-1.5K | 1350W/6A | Step-Up Voltage & Frequency Converter – 120V/60Hz to 220V/50Hz

$1,395.00 USD

Model: UX-1.5K

Input voltage: 120V
Input frequency: 45Hz - 70Hz

Output voltage: 200V/220V/230V/240V (Selectable)
Output frequency: 50Hz or 60Hz (selectable)

Capacity: 1350W (6.3 Amp)
Maximum Output Current: 6.3 Amp

Your application power requirement should not exceed maximum output current.

➤ View UX-1.5K Specifications

➤ View / Download Product Manual (PDF)
➤ View / Download Product Brochure (PDF)
➤ View Required Wall-Outlet type: NEMA 5-20 R (20 Amps) (Image)

Available Capacities

in Step Up (UX) Series

View details
View details
View details
View details
Model
Model
UX-1K
UX-1.5K
UX-2K
UX-3K
Price
Price
$1,150.00 USD
$1,395.00 USD
$1,595.00 USD
$1,895.00 USD
Current
Current
4.2 Amp
6.3 Amp
8.4 Amp
12.5 Amp (Requires Dedicated 240V Input Power)
Capacity
Capacity
900W/1000VA
1350W/1500VA
1800W/2000VA
2700W/3000VA *

UX-1.5K

Outstanding performance & reliability, the unique benefits of the UX Step Up voltage & Frequency Converter
Overview
This series is a double conversion Power Converter which produces stable pure sine wave voltage and frequency output (O/P). With this Converter, you can protect your equipment from most power issues, including power sags, power surges, brownouts, and line noise. With the common neutral topology, the converter provides internal connection from AC I/P neutral to AC O/P neutral; thus, it does not need to use an isolation transformer to provide 0 volt from AC I/P neutral to O/P neutral. This feature will reduce the interference to loads of communication or video systems.
Features
  • Outstanding Performance & Reliability
  • Common Neutral, Double Conversion Topology (0/P Neutral to 1/P Neutral is O volts normally)
  • Wide Range Input Window and Input Power Factor Correction
  • Low Noise, Smart Cooling Fan Design
  • High Efficiency, New Full-bridge Inverter Design
  • Automatic Restart After Overload Shutdown
  • AC Input Generator Compatible
  • Multifunction LCD Screen
Specification
Models UX-1.5K
Output
Output capacity 1350W/1500VA
Output voltage 200V/220V/230V/240V (Selectable)
Maximum output current 6.3 Amp
Output peak current 250ms 20 Amp
Maximum continuous load 1350W
Maximum peak load 1800W
Voltage regulation ±2% of selected output voltage
Output frequency 50Hz or 60Hz (selectable)
Output frequency synchronization 60±0.01Hz or 50±0.01Hz (independent of input frequency)
Crest factor 3:1
Voltage waveform Sine Wave
Total harmonic distortion resistive load <2%
Total harmonic distortion reactive load <3%
Standby power 35W
Output emi filter N/A
Output rfi filter 30Mhz - 1000Mhz
Clamp level 390V Peak
Efficiency input to output >87%

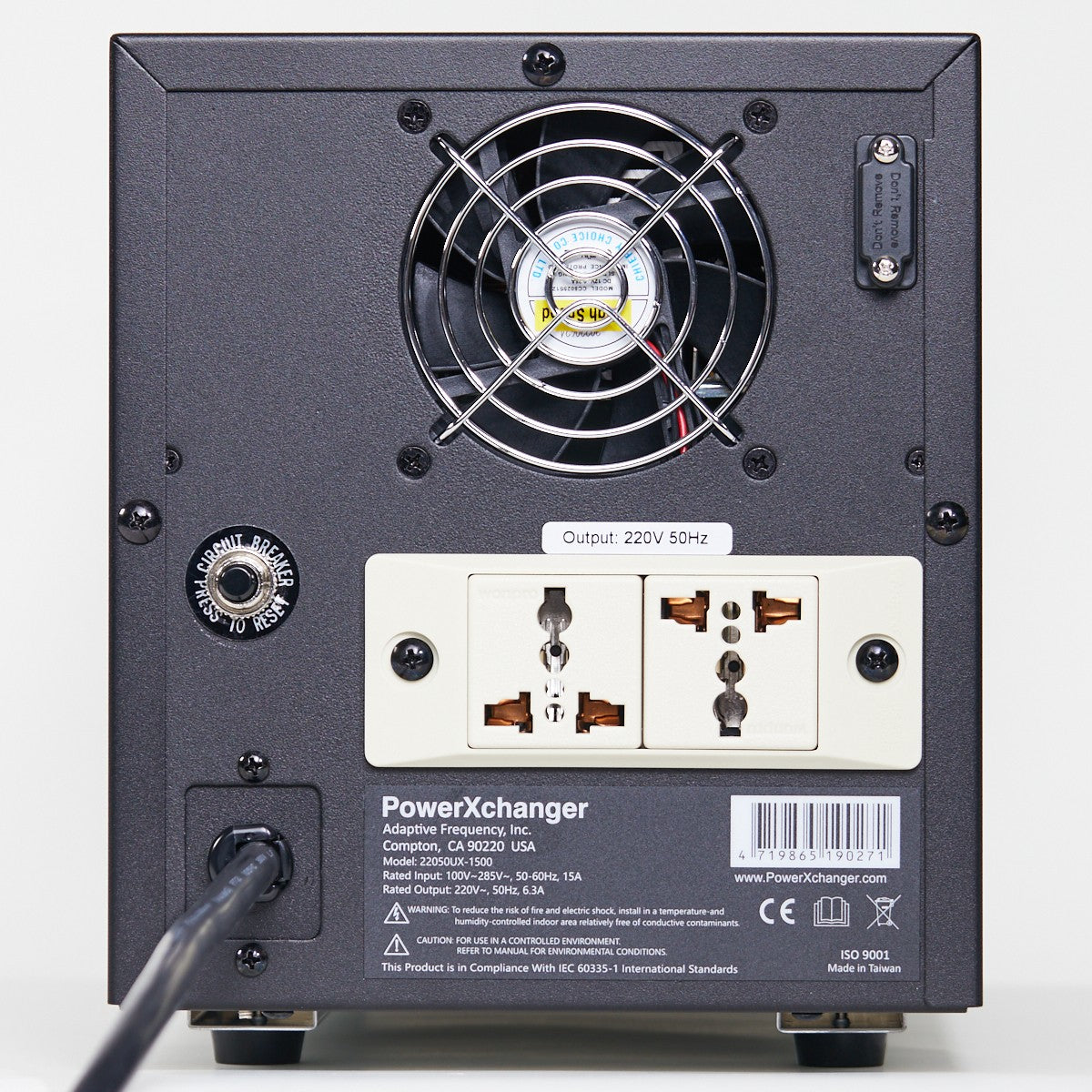

Output Connection From Mains
Ground Input and Output Ground are Connected
Neutral Input and Output Neutral Connected (after EMC inductor ) Isolation Transformer is not required
Input
Nominal input voltage 120V
Input voltage range 100Vac ~ 285Vac
Input current 15 Amp
Input frequency range 45Hz - 70Hz
Input neutral auto detect and correct No
Wall outlet type required NEMA 5-20 R (20 Amps)
Phase Single
Noise filtering Full-Time EMI/RFI Filtering
Input emi filter 150Khz -30Mhz (class A)
Input rfi filter 30Mhz - 1000Mhz (class A)
Overcurrent protection input By Re-Settable; Overcurrent Protector
Power factor ≧ 0.98
Switch on surge in rush current <100A, 3mS
Voltage interruption ride through 10mS
Protection
Overcurrent protection output Overload Alarm Level: 100% ~ 129% (alarm after 1 minute delay, shutdown after 1 minute alarm); Overload Shutdown Level: 130% (shutdown after 2 second delay)
Short circuit protection Pulsating Type, 20A Peak; Auto-Restart time: 30 seconds
Over temperature protection When the temperature inside is over 76℃, the LCD will show the Over-Temperature Symbol. If the temperature continues rising to 85℃, the buzzer alert for high temperature is activated and the CPU will shut down the output voltage. The CPU will resume output voltage automatically once the temperature drops to 75℃ or lower.
Indicators and Alarms

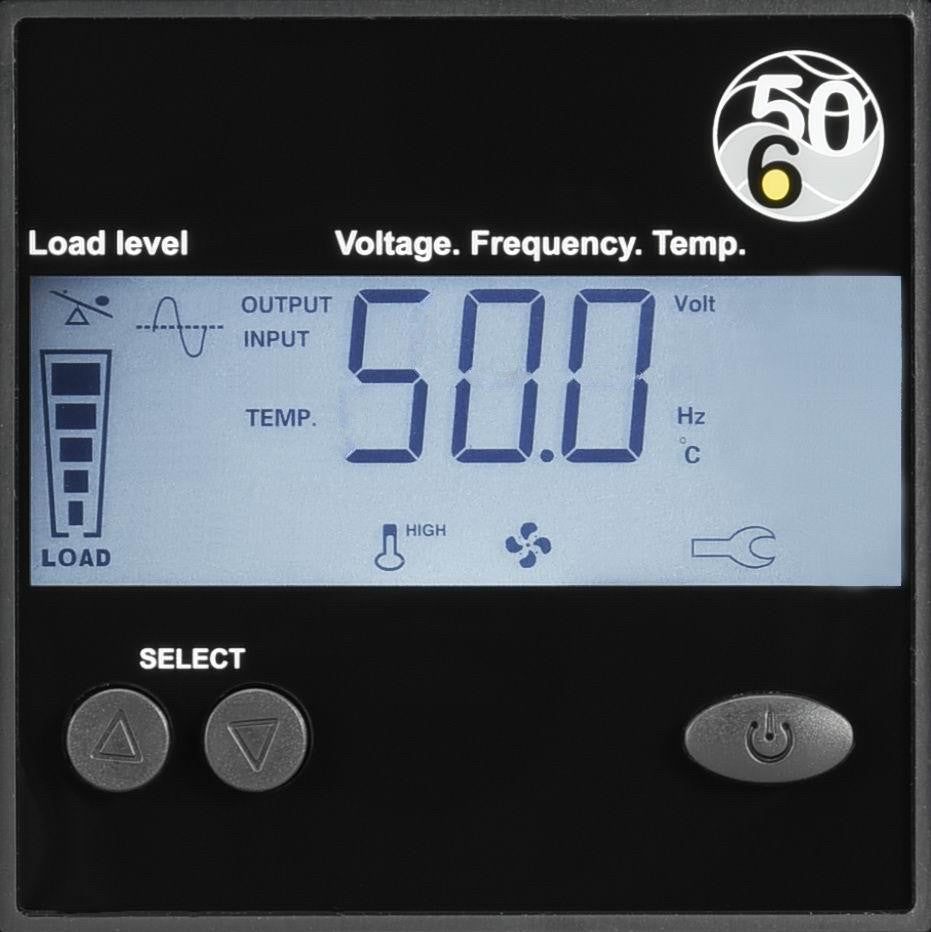

Lcd display Displays Input Voltage, Output Voltage, Output Frequency, Temperature, Load Level. Selectable Output Voltage and Output Frequency
Indicator load level LCD Displays Current Usage Level of Total Available Capacity
Indicator overload LCD Shows Overload Symbol
Indicator over temperature LCD Shows Over-Temperature Symbol
Audible alarms Overload Alarm, Short-Circuit Alarm, Over-Temperature Alarm
Audible alarm overload Continuous Alarm
Audible alarm short circuit Every other 2 seconds, 32 beeps in 2 seconds
Audible alarm over temperature Every other 2 seconds, 32 beeps in 2 seconds
Environmental and Safety
Sealed solid state electronics No
Operating temperature Up to 1500 meters: 0℃ to 40℃ (32℉ to 104℉)
Transit storage temp -15℃ to 55℃ (5℉ to 131℉)
Relative humidity 5 – 95% Non-Condensing
Operating altitude 0 ~ 3000 Meters
Moisture sensitivity Internal Fan
Audible noise ≦45 dBA (at 1 meter from surface of unit)
Safety markings CE & BSMI
Cooling
Cooling method Forced Air Cooling by Internal Fan
Natural ventilation cooling No
Internal fans Internal fan will run at low speed continuously when the temperature inside is low. Fan speed increases as temperature rises. When internal temperature is over 60° C, the internal fan runs at full speed
External emergency cooling fan N/A
Physical
Product dimensions
(L x W x H)		 18 in x 8 in x 7 in / 45 cm x 20 cm x 18 cm
Product weight 15.5 lb / 7 kg
Carton dimensions
(L x W x H)		 25 in x 15 in x 17 in / 64 cm x 38 cm x 43 cm
Shipping weight 22 lb / 10 kg
Warranty, Quality Control, and International Approvals
Warranty 2 Years, Full Replacement
Quality control standard ISO9001
UL-ULus Not Applicable
UL 1012 Not Applicable
UL-cUL Not Applicable
DEMKO-CB Not Applicable
TUV/SUD-CB Not Applicable
FCC Part 15 Not Applicable
EMC Not Applicable
Other
Standard accessories None
Wall mountable No
Appliance mountable No
Compatibility
Output compatibility with ups Yes
Ac input generator compatible Yes

General

Can I run a 50Hz motor on 60Hz supply?

Running a 50 Hz motor on a 60 Hz supply will make it run
about 20% faster. This can cause extra heat, vibration, and reduced torque
depending on the design. Some motors are built for both 50/60 Hz and will work
safely, while others may wear out quickly or fail.

To ensure proper performance and protect your equipment, we
recommend using a PowerXchanger frequency converter.

Can I use a PowerXchanger to convert 50Hz European equipment to operate in U.S. 60Hz factories?

Yes, that’s exactly what PowerXchanger is designed to do. It converts both the voltage and the frequency so your 50 Hz European equipment can run reliably on U.S. 60 Hz power at industrial and factory sites.

This ensures motors, tools, and sensitive electronics operate at their intended speed and performance. Always confirm the voltage and power rating of your equipment to choose the right PowerXchanger model.

How do I know if I need a frequency converter or a voltage transformer?

A voltage transformer only changes the voltage, while a frequency converter changes both voltage and frequency.

If your equipment label shows it supports both 50/60 Hz, you usually only need a transformer to match the voltage. If it specifies a single frequency (50 Hz or 60 Hz only), then you will need a frequency converter to run it properly.

Always check the rating plate on your device to determine which solution is required.

Returns and Refunds

How do I return a product?

Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unworn/unused, have any tags still attached, and include all the original packaging.

How long will it take to receive my refund?

Refunds are processed within 7 days from when we receive the item(s).

Shipping

How long will it take to receive my order?

Standard shipping normally takes 3-5 days. Next day shipping is available on all domestic orders (for an additional charge). International shipping times depend on the products and destination (estimated at checkout).

What countries do you ship to?

We currently ship to the United States, Canada, Australia and the UK. To enquire about shipping to a different destination, please contact us.

Technology

What is the difference between a voltage transformer and a frequency converter?

Voltage transformers adjust the voltage level (e.g., from 230 V down to 110 V), protecting your devices from overvoltage
damage.

Frequency converters ensure that the electrical frequency (50 Hz vs. 60 Hz) matches what your device was built for.

Why does the frequency matter?

Because so many devices, from washing machines and CPAP
Machines to audio equipment, kitchen appliances, and tools all rely on precise
timing or motor speed governed by the mains frequency. Run a 60 Hz-designed
motor or compressor at 50 Hz, and it will spin slower, draw more current,
overheat, or fail altogether.
